Spotlights, floodlights and colour changers

For a perfect illumination of your performance areas, different types of spotlight are employed.

The spotlights selected are matched to the relevant application, so that every event can be perfectly illuminated.

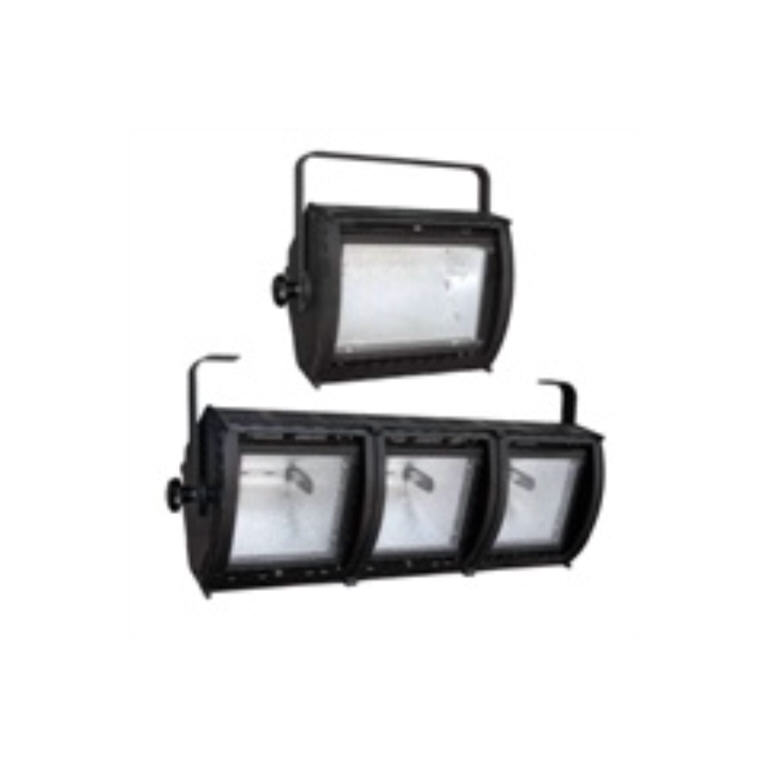

Halogen flood lights

Halogen flood lights
Halogen flood lights

The reflector, symmetrical as standard, achieves a wide, soft cone of light which can be limited in accordance with requirements using the barn doors fitted.



Several floodlights spread across the stage area create an even, shadowless illumination.



Also available as a multi-chamber light, optionally with coloured glass inserts.



PAR spotlights

PAR spotlight
PAR spotlight
Lighting in a stage unit
Lighting in a stage unit

Lightweight and inexpensive spotlight without a lens or reflector system. The luminaire mirror reflector creates lighting almost round in shape and allows for up to three different focal distances, depending on the design. This spotlight is suitable for use with coloured foils or digital colour changers which can be controlled from the light mixing console (For more see Control systems)

Lens spotlights

Lens spotlights
Lens spotlights
Lens spotlights

Spotlights with adjustable light beam are suitable for use in the immediate stage area.



The light beam is circular and provides a more or less soft edge transition (F or PC).

With optional barn doors, you can shadow light scatter. This spotlight is suitable  for use with coloured foils or digital colour changers which can be controlled from the light mixing console.

Profile spotlights

Installation inside the spectator area
Installation inside the spectator area
Profile spotlights
Profile spotlights

Spotlights with a twin lens system for a intense focusing of light with larger distances to the subject.



Suitable as a proscenium spotlight (installation inside the spectator area). The size of the light beam can be changed with zoom systems. It is then also possible to focus.  In addition, an optional iris serves to quickly change the light beam diameter in a perfectly circular shape. So-called shutter blades can also be used to create square projections. And it’s no problem to project logos either!



These spotlights are suitable for use with coloured films or colour changers.



Profile spotlights with coloured foils
Profile spotlights with coloured foils

Follow spotlights

Follow spotlights
Follow spotlights

Follow spotlights are really a type of zoom profile spotlight operated manually on an optional tripod.



It should be very light-intensive and is usually operated using an optional manual colour magazine.

An iris to adjust the light beam and an electronic or mechanical dimmer  are included in the scope of delivery.



Dimmer and light mixing consoles

Dimmer with 6 circuits
Dimmer with 6 circuits

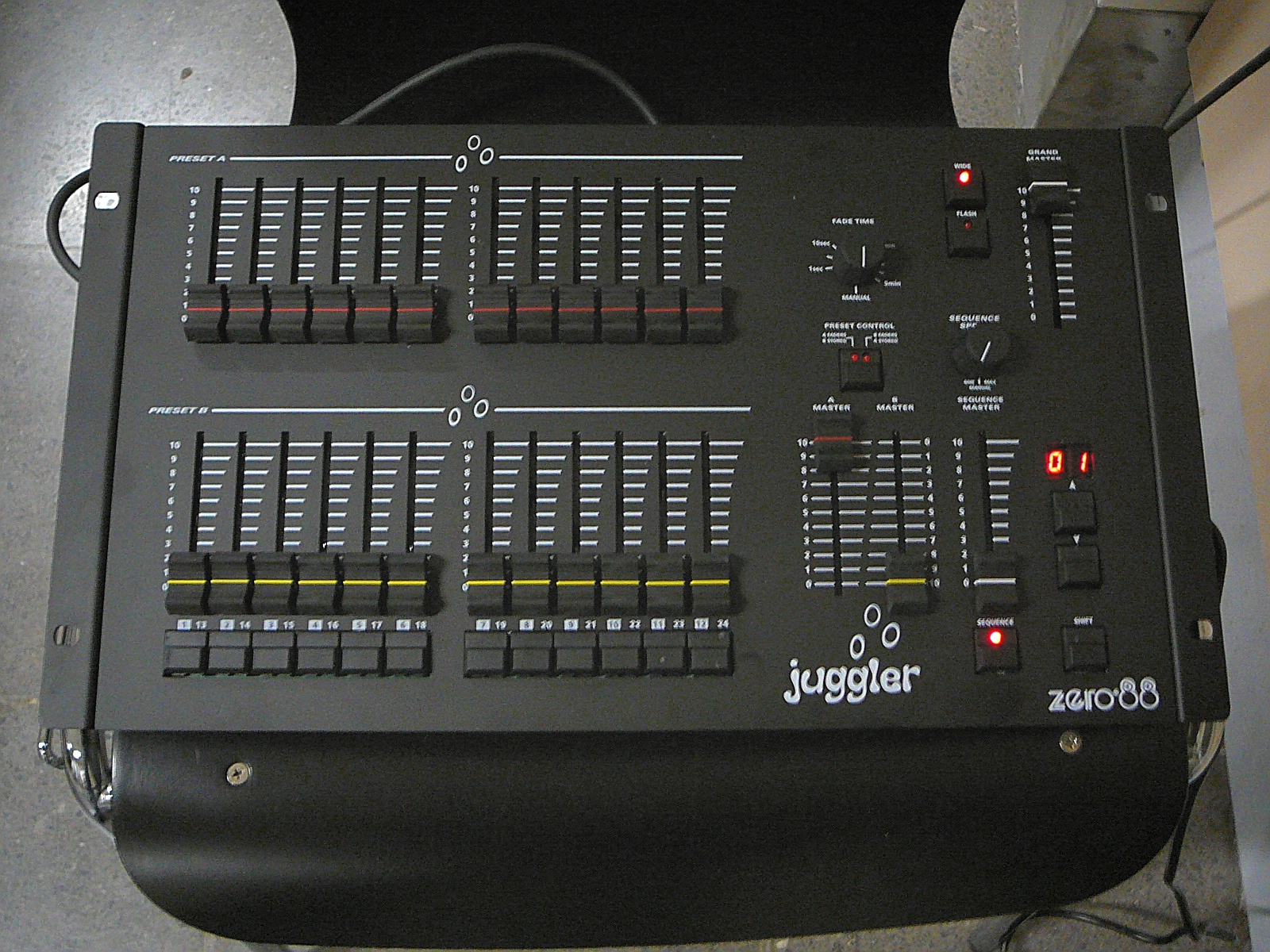

Light mixing console, digital
Light mixing console, digital

Whether you use a central power supply cabinet or a mobile rack - their combination with cutting-edge control technology provides for optimum integration into your total utilisation concept at all times. Control devices and consoles are powerful, yet come with a clear layout and are easy to operate.

The light mixing system is adjusted to any application, and of course all spotlights are also selected to suit the corresponding event sector  and purpose.

Dimmer – Central installation dimmer

Installation dimmer
Installation dimmer

Where there is a permanently integrated stage, a wall installation dimmer is installed inside a control room provided for this purpose. Each spotlight position is provided with a shock-proof plug socket which can then be controlled from the mobile light mixing console. All details with regard to the positioning and installation of cables are planned by our engineers in cooperation with our customer. The dimmer is programmed once and can then be operated maintenance-free.

Dimmer - Mobile design

Dimmer pack
Dimmer pack

Where there are variable stage positions, a mobile dimmer rack is used. All components are safely fitted inside a movable case. Pre-configured multi-core and control cables allow the flexible use of the overall lighting system. All you need to operate the whole system is one CEE socket of the rating required. All spotlights and devices are supplied using shock-proof distributors which can be mounted all over the stage area and allow for several different configurations this way.

Light mixing console and Accessories

Light mixing console
Light mixing console
Case
Case
Power distribution
Power distribution

In its mobile version, the light mixing console can be either operated directly next to the dimmer or at any position inside the hall as required. Control cables are supplied pre-configured to the lengths required.

We will be pleased to co-operate with all planners and operators to create the required plans and drawings as per your individual requirements!
